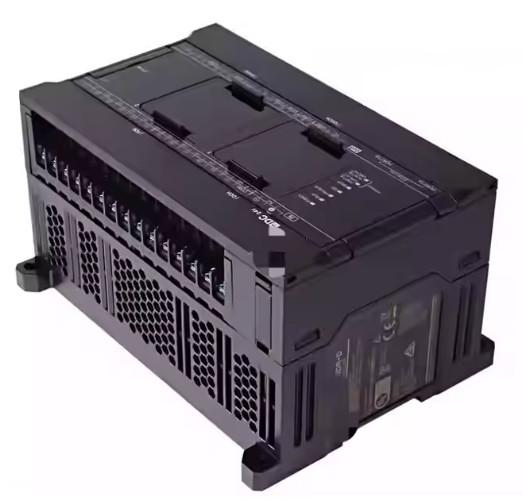

The OMORN CP1H-XA40DR-A is a compact PLC designed for industrial automation, combining 40 I/O points with built-in analog capabilities. It features a 20K-step program memory and 32K-word data storage, enabling complex logic execution at 0.10μs per instruction. The AC-powered unit (100–240VAC) supports 24 digital inputs (PNP/NPN) and 16 relay outputs (2A), ideal for high-current applications. With four analog inputs and two outputs, it simplifies process control, including PID tuning for temperature or pressure regulation. Four high-speed counters (100kHz) and pulse outputs (up to 100kHz) enable precise multi-axis motion control, making it suitable for robotics, conveyors, and CNC machinery.
Equipped with a USB port for programming and configuration, the CP1H-XA40DR-A supports diverse communication protocols, including Ethernet/IP, Modbus, and Profibus, via optional expansion boards. It integrates with CJ1-series special I/O units and accommodates up to seven CP1W expansion modules, expanding local I/O to 320 points. Built-in safety features like short-circuit protection and a 300mA auxiliary 24V DC power supply enhance reliability. The PLC’s compact design (150x90x85mm) and DIN-rail mounting ensure space-efficient installation in industrial panels.
Designed for harsh industrial settings, the CP1H-XA40DR-A operates from 0°C to 55°C and resists vibrations up to 150m/s². Its IP50-rated housing protects against dust and limited water exposure, while redundant power supply options (AC/DC) ensure continuity in fluctuating grids. The PLC supports ladder logic, structured text (ST), and function block programming, catering to both simple and advanced automation needs. Backed by OMORN’s ISO 9001 certification and a 2-year warranty, it offers cost-effective performance for applications ranging from AGV systems to smart factory automation.
|
Attribute
|
Specification/Description
|
|
Product Type
|
Programmable Logic Controller (PLC)
|
|
Model
|
CP1H-XA40DR-A
|
|
I/O Configuration
|
24 Digital Inputs (24V DC PNP/NPN), 16 Relay Outputs (2A)
|
|
Analog I/O
|
Built-in: 4AI (0–10V/4–20mA) + 2AO (0–10V/4–20mA)
|
|
Power Supply
|
AC 100–240V (50/60Hz), 24V DC auxiliary output (300mA)
|
|
Memory Capacity
|
20K steps (Program), 32K words (Data)
|
|
Execution Speed
|
0.10μs per instruction (LD/OUT command)
|
|
Motion Control
|
4-axis pulse output (100kHz max.), 4 high-speed counters (100kHz)
|
|
Communication Interfaces
|
- USB 2.0 (for programming)
- RS-232/RS-485 (optional)
- Ethernet/IP, Modbus, Profibus (via expansion)
|
|
Expansion Slots
|
1 CPU bus slot + 7 local I/O slots (supports CP1W modules)
|
|
Dimensions
|
150mm × 90mm × 85mm (W×H×D), DIN-rail mountable
|
|
Operating Temperature
|
0°C to +55°C
|
|
IP Rating
|
IP50 (dustproof and splash-resistant)
|
|
Weight
|
约 500g
|
|
Key Features
|
- AC/DC power dual support
- Built-in PID control
- 32-bit floating-point processing
- 1ms cycle time for 10k steps
|
|
Compliance
|
CE, RoHS, UL
|
